Revolutionary Nanobubble
Technology

Leading the future of water treatment with advanced nanobubble generators. Enhance water quality, improve efficiency, and drive sustainable solutions across industries.

10+
Years Experience
200+
Installations Worldwide
99.9%
System Reliability

Cutting-Edge Technology

Our nanobubble generator provides superior performance and reliability through unique technological innovation.

There are many techniques for generating microbubble. Microbubble technology requires a lot of energy and time to generate nanobubbles, which is not economical. The Newmantech’s nanobubble generation technology takes a different approach. It applies shear force to the flowing gas–liquid mixture, splitting it into bubbles. More specifically, when the mixture comes into contact with a certain surface, a velocity gradient is created by the boundary layer effect, continuously breaking down the gas–liquid mixture into nanobubbles.

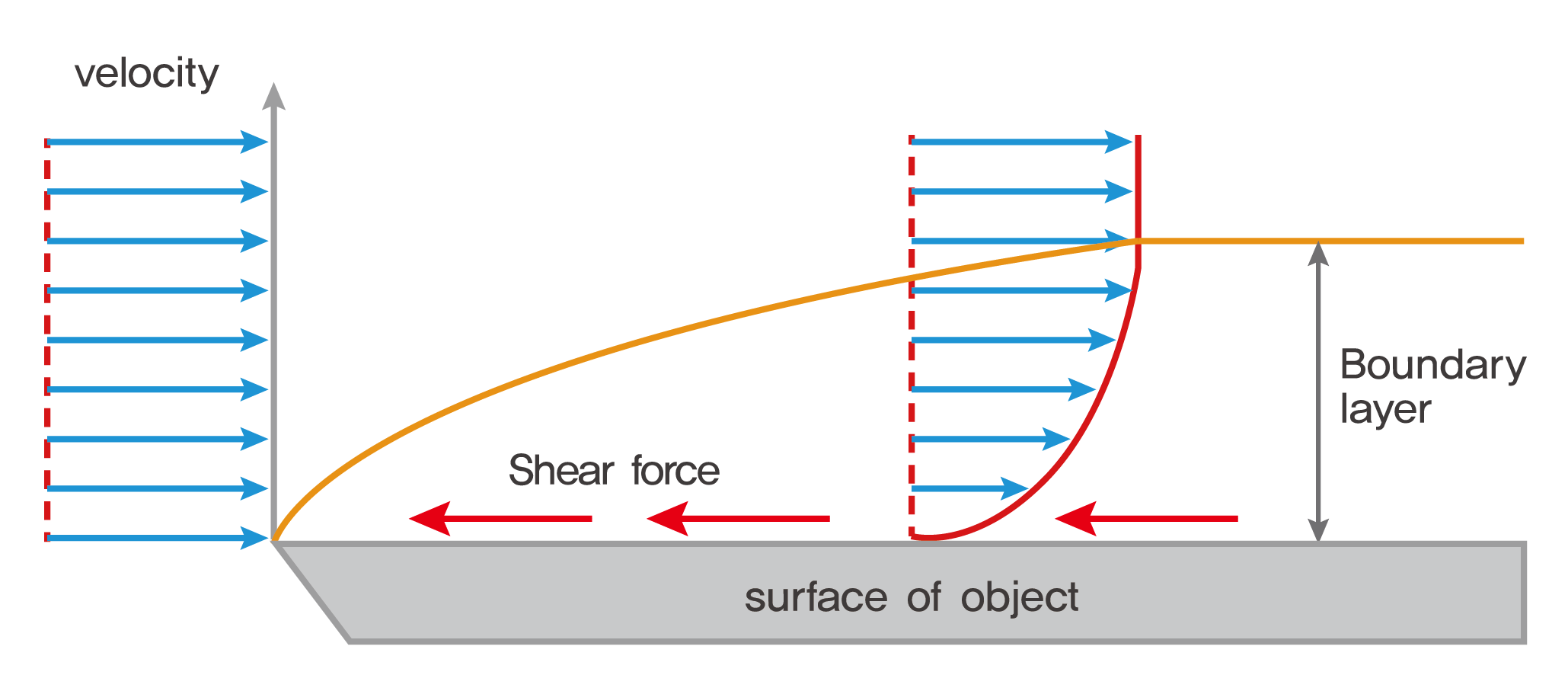

Generated Velocity gradient by shear force at interface
Generated Velocity gradient by shear force at interface

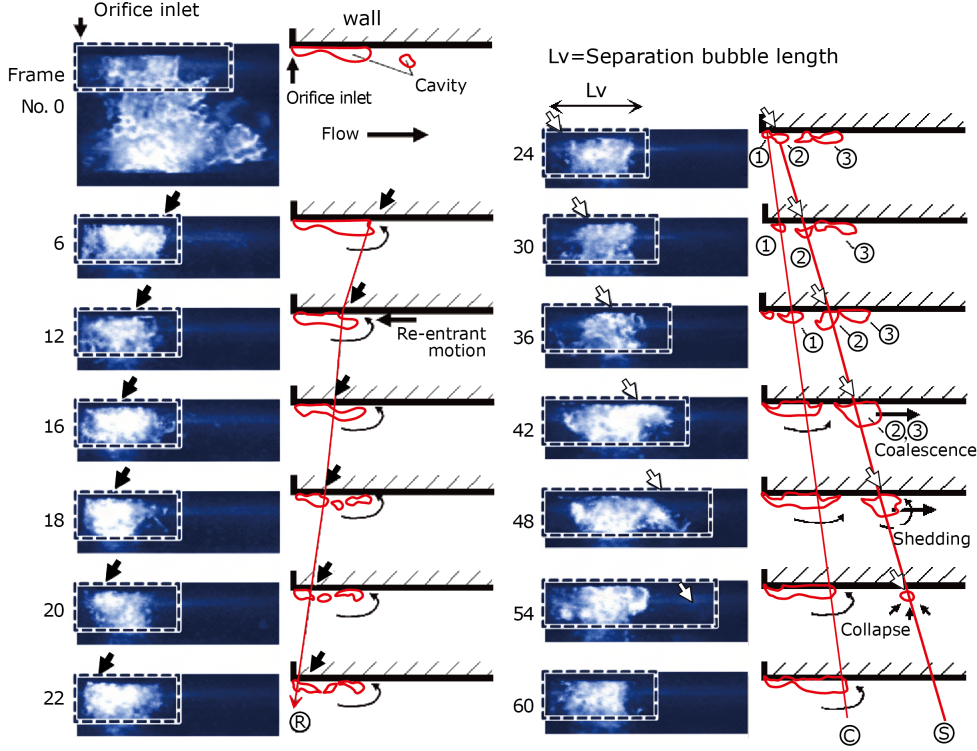

Splitted Bubbles by shear force
Splitted Bubbles by shear force

Nanobubble Generator Version

Continuously upgraded each year, our nanobubble generator achieves better performance, enhanced efficiency, and improved economic value for long-term use.

2025
  • 2× Gas Injection Rate
  • Wide Pump Choice
  • 200m³/hr+ High Capacity
2024
  • Adanced low-pressure device
  • 99%+ Large bubble removal
  • High-Capacity, Single-Vessel
2023
  • Clogging Solved
  • Simplified Parts
  • 100m³/hr High Capacity

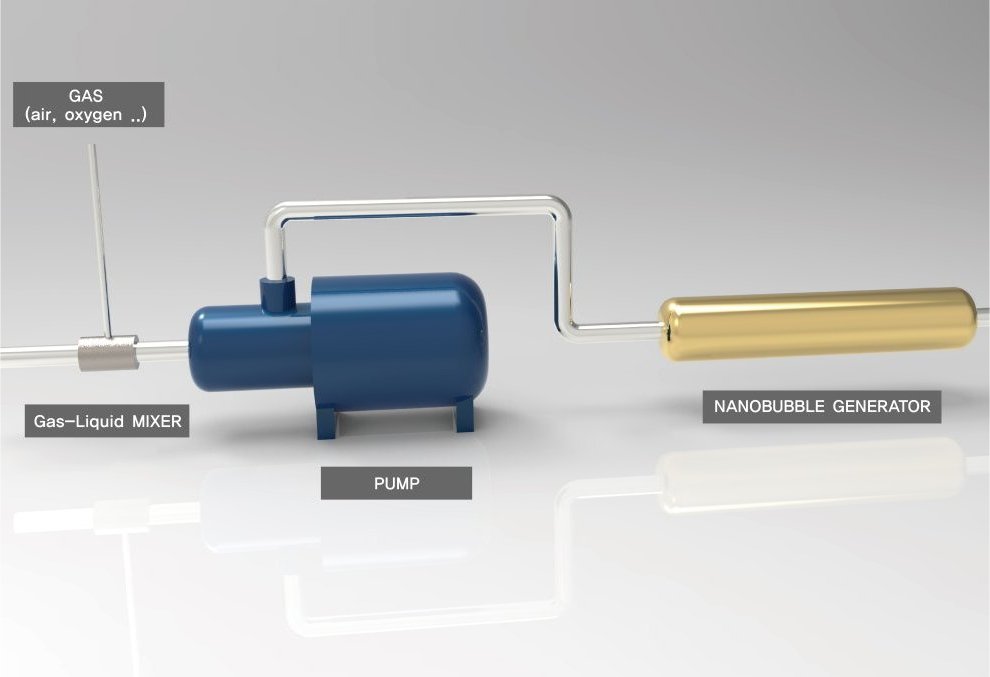

Nanobubble Generator Diagram

Nanobubble Generator

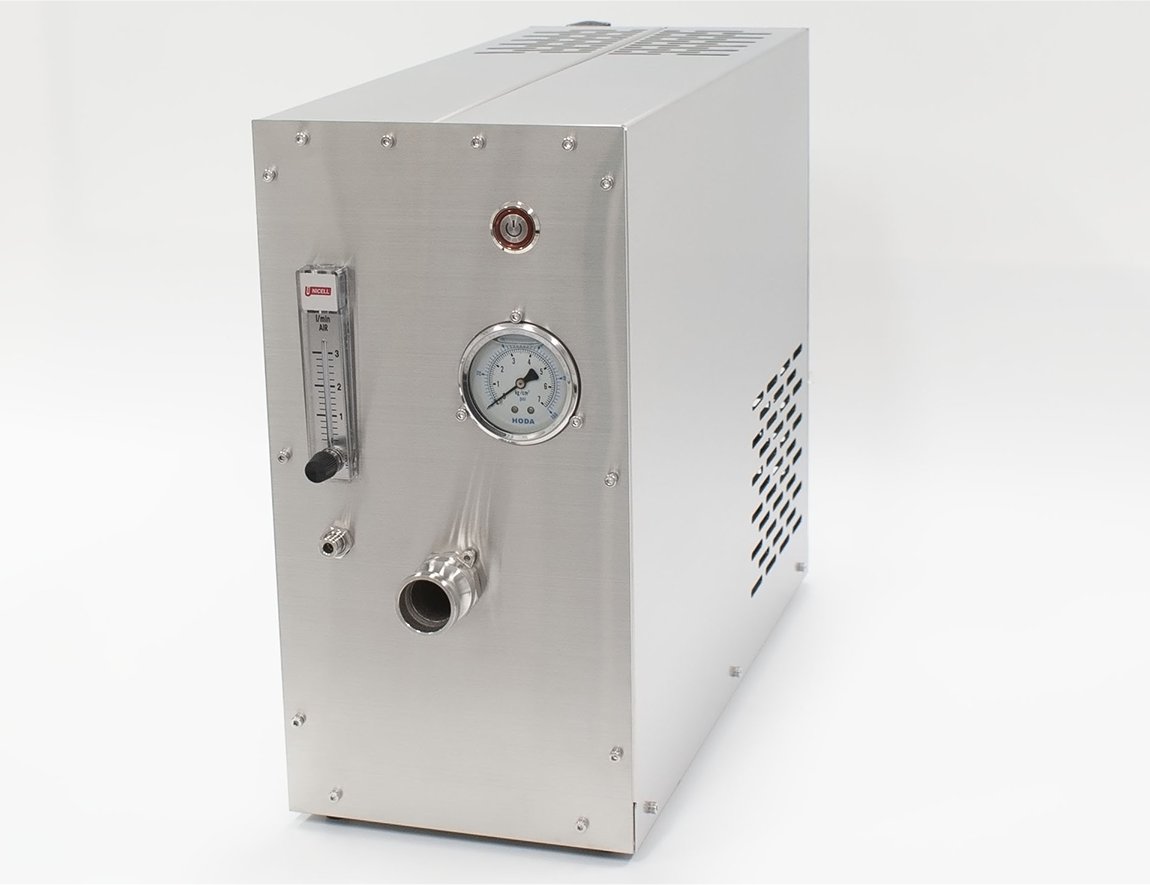

Lab-scale(N2BG-001)
Lab-scale(N2BG-001)

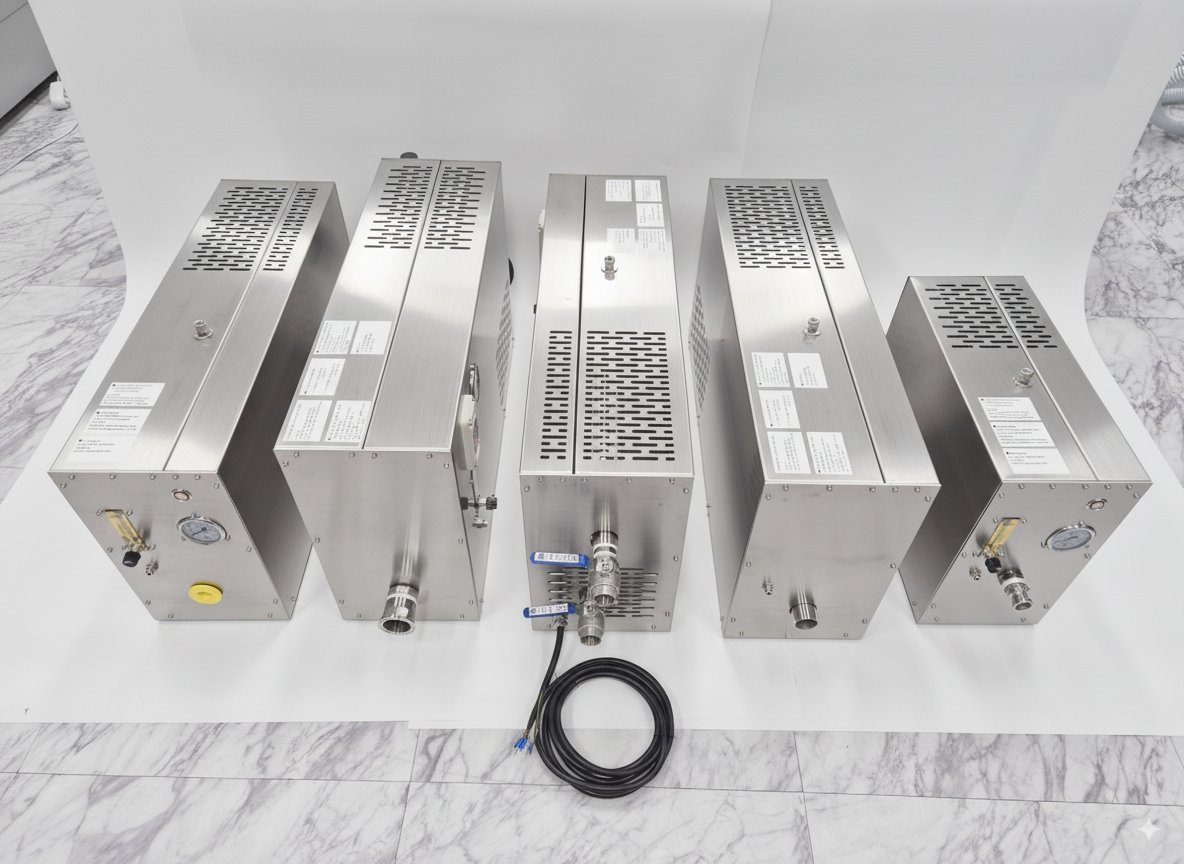

3~10㎥/hr Device
3~10㎥/hr Device

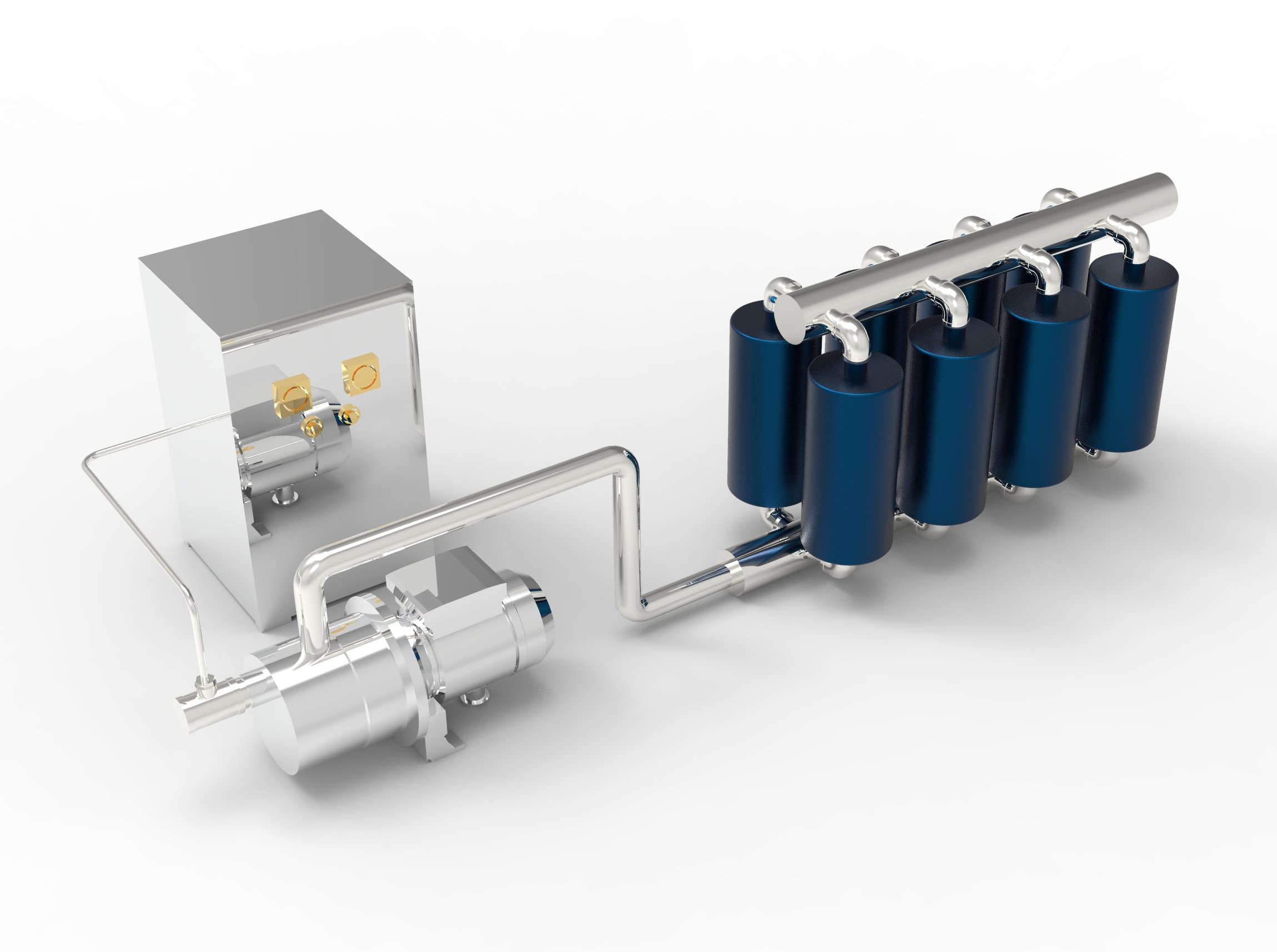

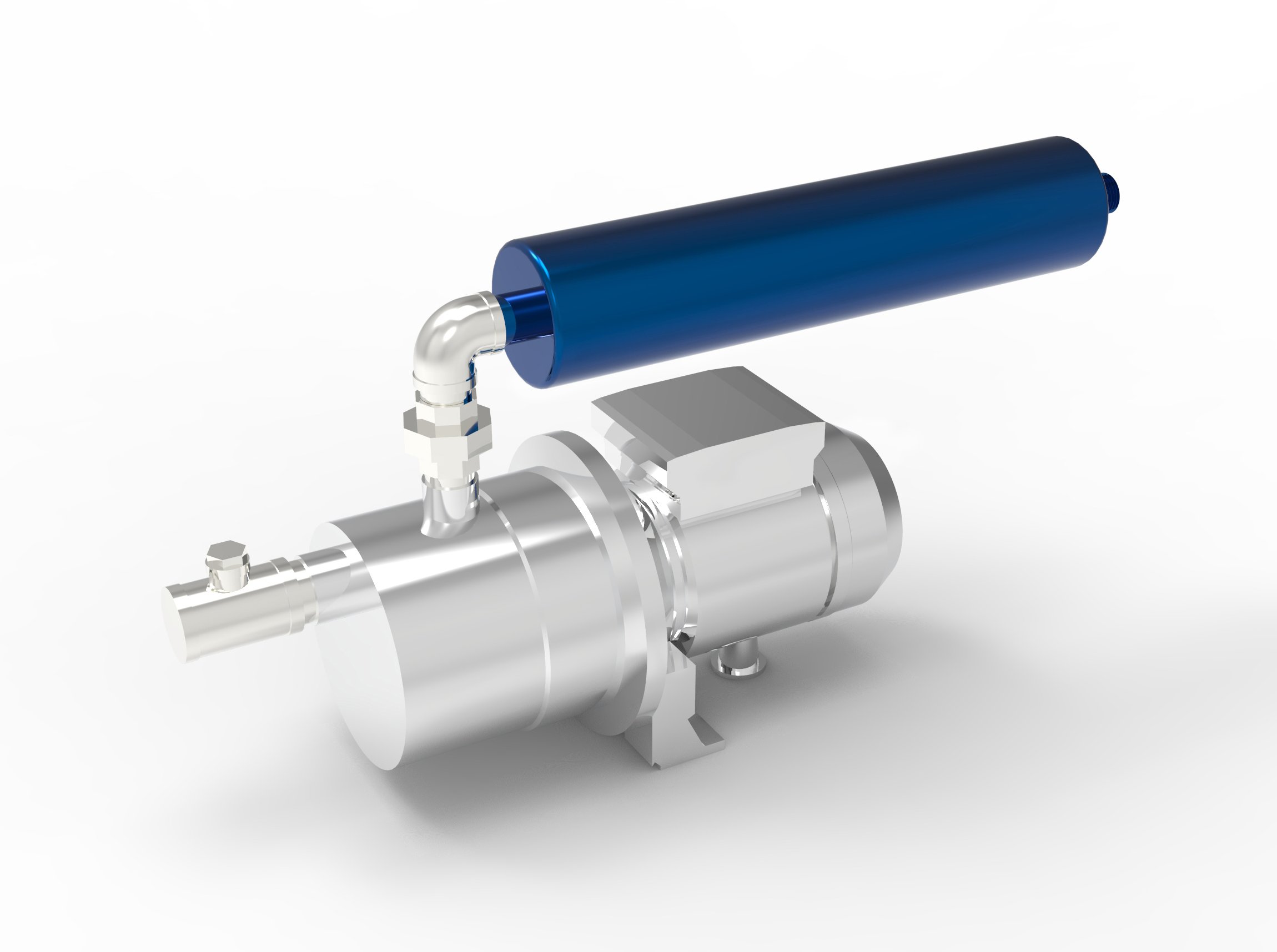

high-capacity Core part
high-capacity Core part

Next-Level Bubble Performance

Experience unmatched efficiency and power with our continuously upgraded nanobubble generator, delivering stable, high-performance bubbles that boost results while cutting energy use.

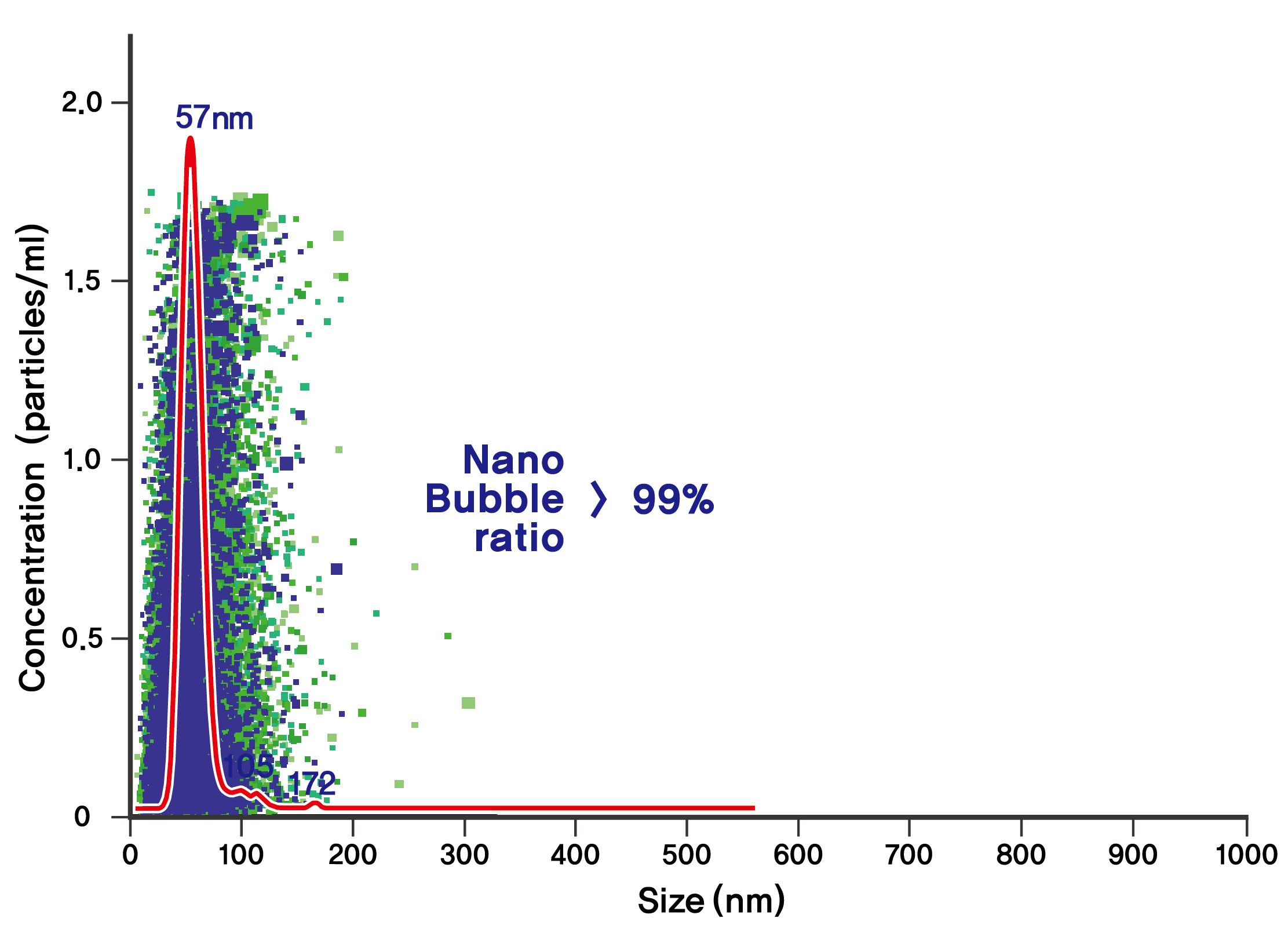

Nanobubble Measurement Distribution Chart
Nanobubble Distribution

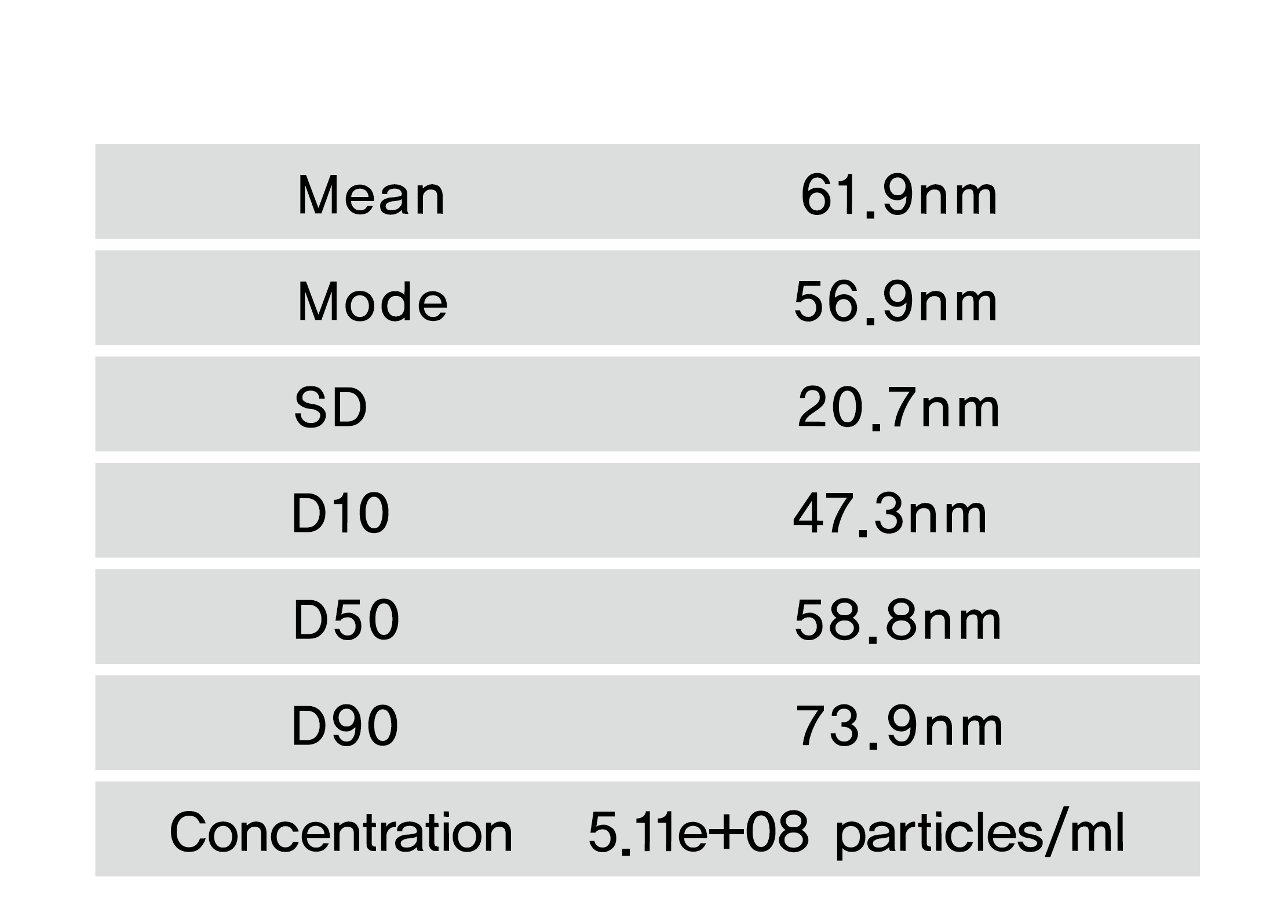

Measured Values of Nanobubble Diameter and Concentration
Nanobubble diameter and concentration

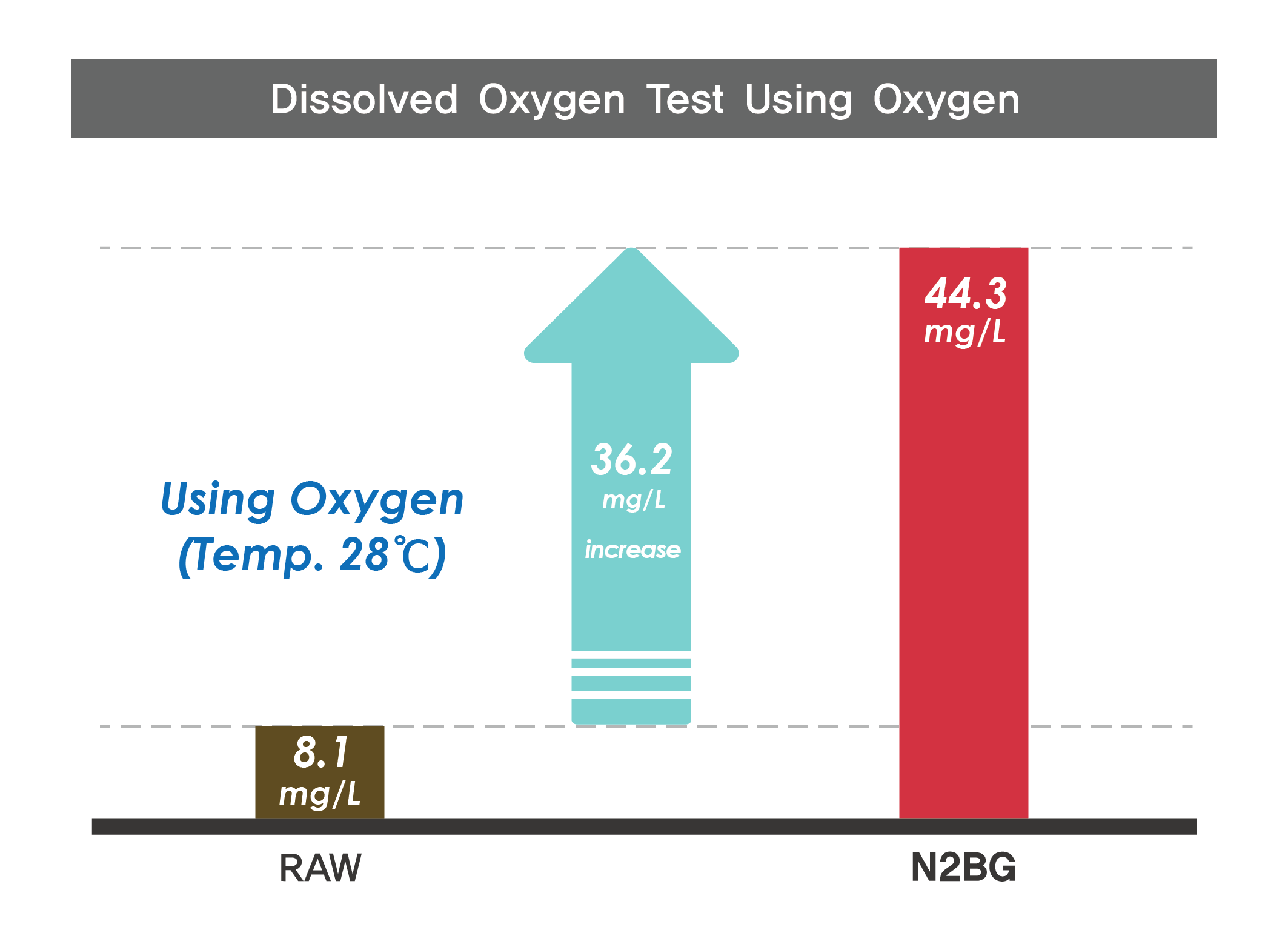

Graph of Dissolved Oxygen Levels in Oxygen Nanobubbles (Using Oxygen Gas)
Dissolved Oxygen Test Using Oxygen

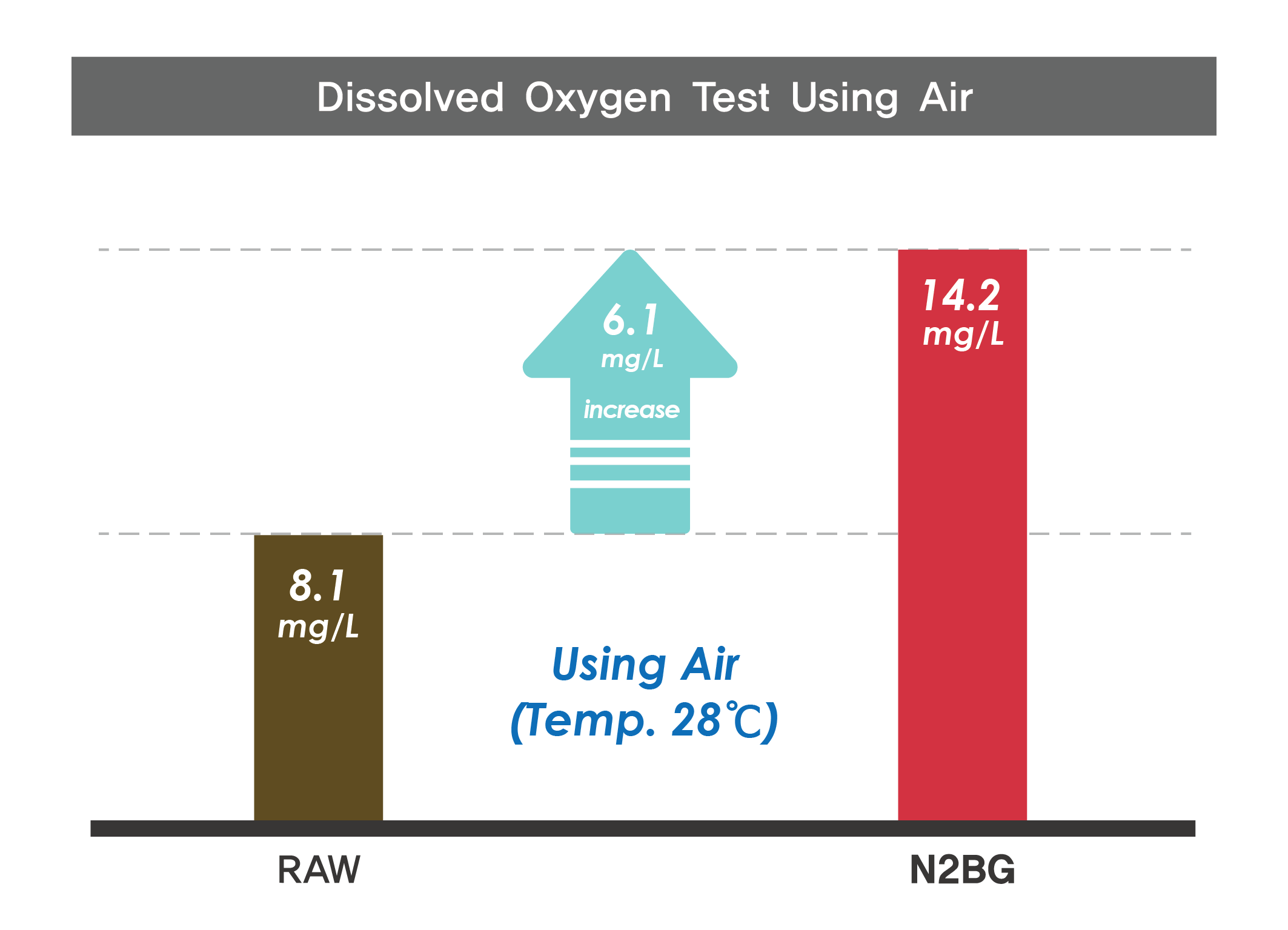

Graph of Dissolved Oxygen Levels in Oxygen Nanobubbles (Using Air)
Dissolved Oxygen Test Using Air

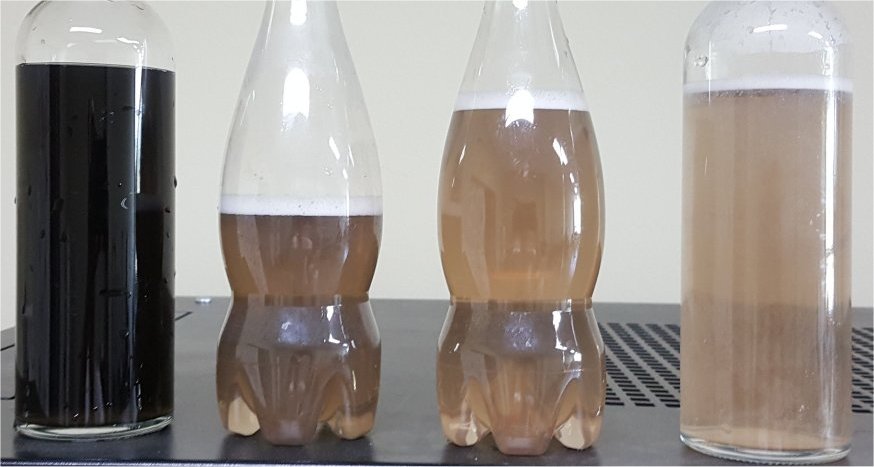

Color Treatment of Dyeing Wastewater with Ozone Nanobubbles
Treatment of Dyeing Wastewater with Ozone Nanobubbles

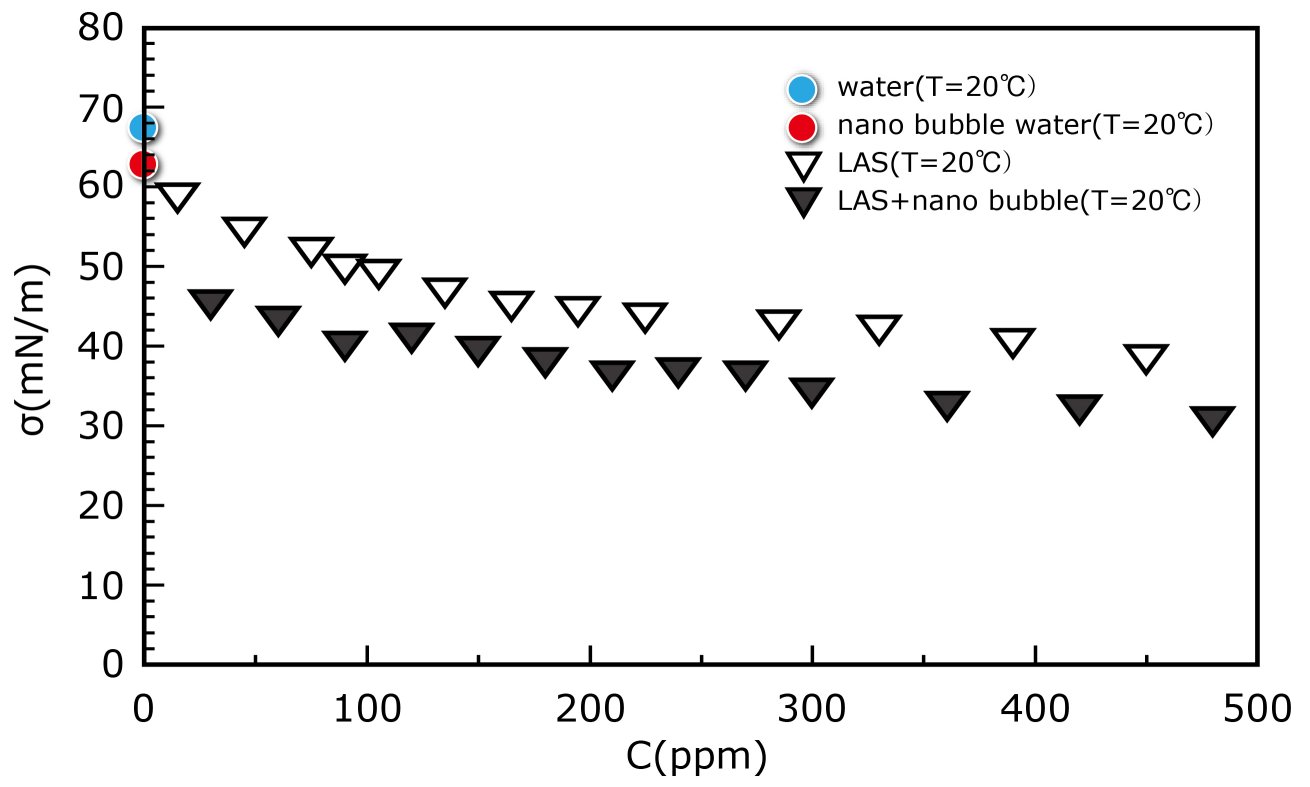

Surface Tension Reduction by Nanobubbles
Nanobubbles: Reduce surface tension (↑ with anionic surfactants) Applications: Less surfactant in cosmetics/pharma → fewer side effects

Questions & Answers

Your guide to nanobubbles: understand key concepts and get expert answers to common queries.

What is nanobubble?

Nanobubble is a bubble with a diameter of less than 1 micrometer. Nanobubble is also called “ultrafine bubble”.

What are the characteristics of nanobubbles?

Nanobubbles are extremely small in diameter and rise through liquid at a very slow rate. According to Stoke’s Law, the flotation velocity of a bubble with a diameter of 100 nm is less than 1 mm per day. Nanobubbles also exhibit very high internal pressure. Based on the Young–Laplace equation, the internal pressure of a 100 nm bubble is about 10 times greater than that of a 1000 nm bubble. This elevated internal pressure enhances the solubility of the gas contained within the bubble. As a result, nanobubbles are uniquely characterized by an exceptionally high gas solubility rate, attributed to both their slow flotation velocity and high internal pressure

How long do nanobubbles exist at atmospheric pressure?

At atmospheric pressure, the volume of nanobubbles gradually decreases over time, although some can persist for several months. However, once their volume is significantly reduced, the unique characteristics of nanobubbles are lost. Since the rate of volume reduction is most rapid immediately after generation, it is recommended to use nanobubbles within 24 hours of their formation.

Do nanobubbles have oxidizing power?

Nanobubbles generated with air do not possess sufficient oxidizing power. To achieve effective oxidation or sterilization, ozone should be used instead of air. Although some assume that oxidative power arises from the explosive collapse of nanobubbles, the magnitude of this effect is negligible and therefore insignificant.

Are microbubbles and macrobubbles worthless?

Each bubble size serves a different purpose. Microbubbles are advantageous for floating suspended solids or oil, while macrobubbles are effective for circulating water. Nanobubbles, on the other hand, have an extremely slow flotation rate, making them unsuitable for use as flotation or circulation devices. It is often the case that devices advertised as nanobubble flotation systems are actually generating microbubbles, not genuine nanobubbles.

What is a nanobubble device?

It is a device that creates nano-sized bubbles within a liquid. It is not a device that sprays only bubbles like an aerator, but a device that effluents the liquid in which nanobubbles exist.

Which gas is economical to use, air or oxygen to raise dissolved oxygen?

The oxygen content of air is 21%, whereas an oxygen generator can provide gas with 90% oxygen concentration. For the same gas volume, the oxygen supplied by the generator is approximately four times greater. In our device, the component that consumes the most power is the pump, while the oxygen generator requires only about 25% of the pump’s power consumption. In other words, by increasing power input by just 25%, the dissolved oxygen can be increased fourfold. Consequently, using an oxygen generator is significantly more economical than using air.

Does dissolved oxygen increase as the diameter of nanobubbles decreases?

Yes, however, reducing the diameter of nanobubbles may not be cost-effective. Producing nanobubbles with an average diameter below 100 nm requires a substantial amount of energy, yet the resulting increase in dissolved oxygen is not proportional to the energy expended. Among the methods for enhancing dissolved oxygen, it is more economical to slightly increase the oxygen injection rate than to focus on producing smaller nanobubbles.

Do nanobubbles have a cleaning effect?

Yes. When nanobubbles collide with solid surfaces, they transition into microbubbles, which help detach contaminants from the surface. In tests conducted on the slime in cooling water pipes, the presence of nanobubbles effectively prevented slime formation.

Comprehensive Solutions

Our nanobubble generators deliver exceptional results across diverse industries, providing innovative solutions for complex water treatment challenges, low oxygen levels, and incomplete cleaning issues.

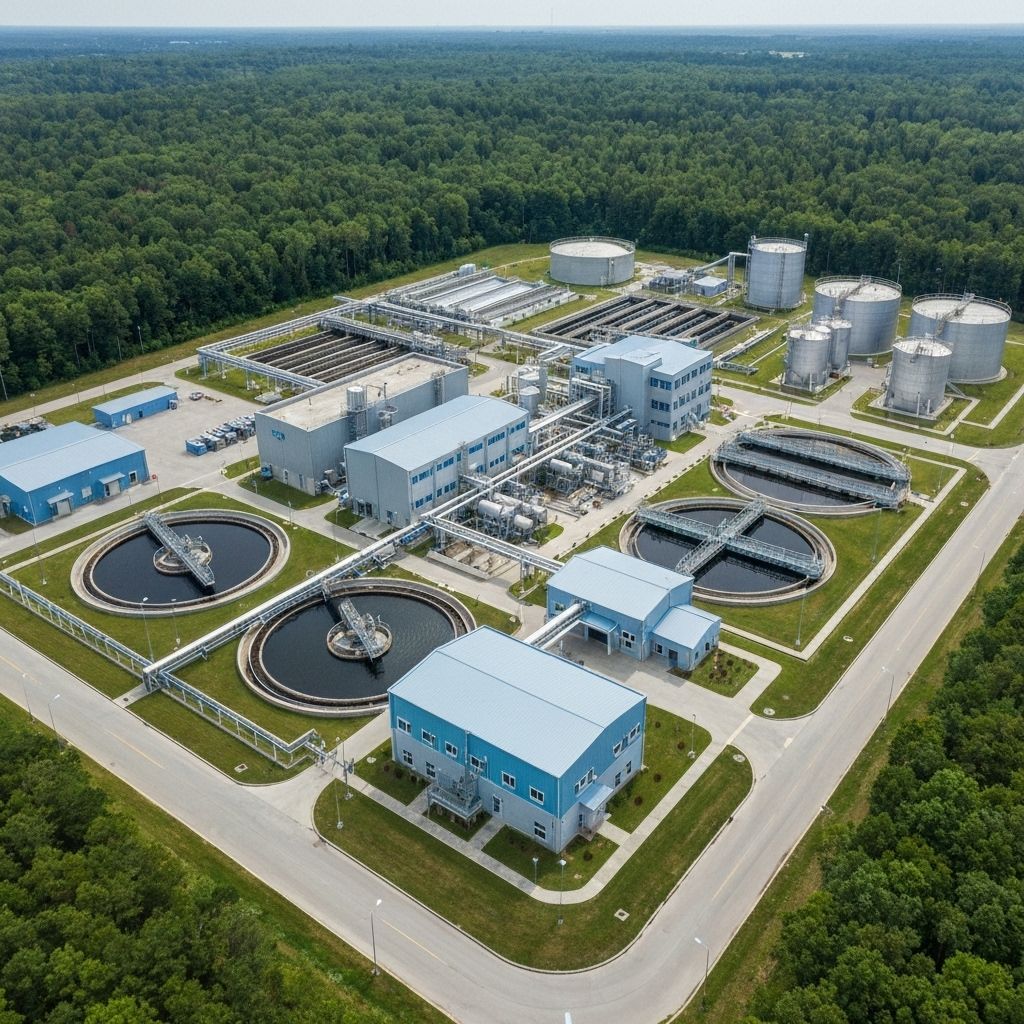

Wastewater Treatment
Wastewater Treatment
Advanced nanobubble technology for wastewater treatment, improving efficiency and reducing operational costs.
  • Enhanced oxygen transfer
  • Reduced energy consumption
  • Improved water quality

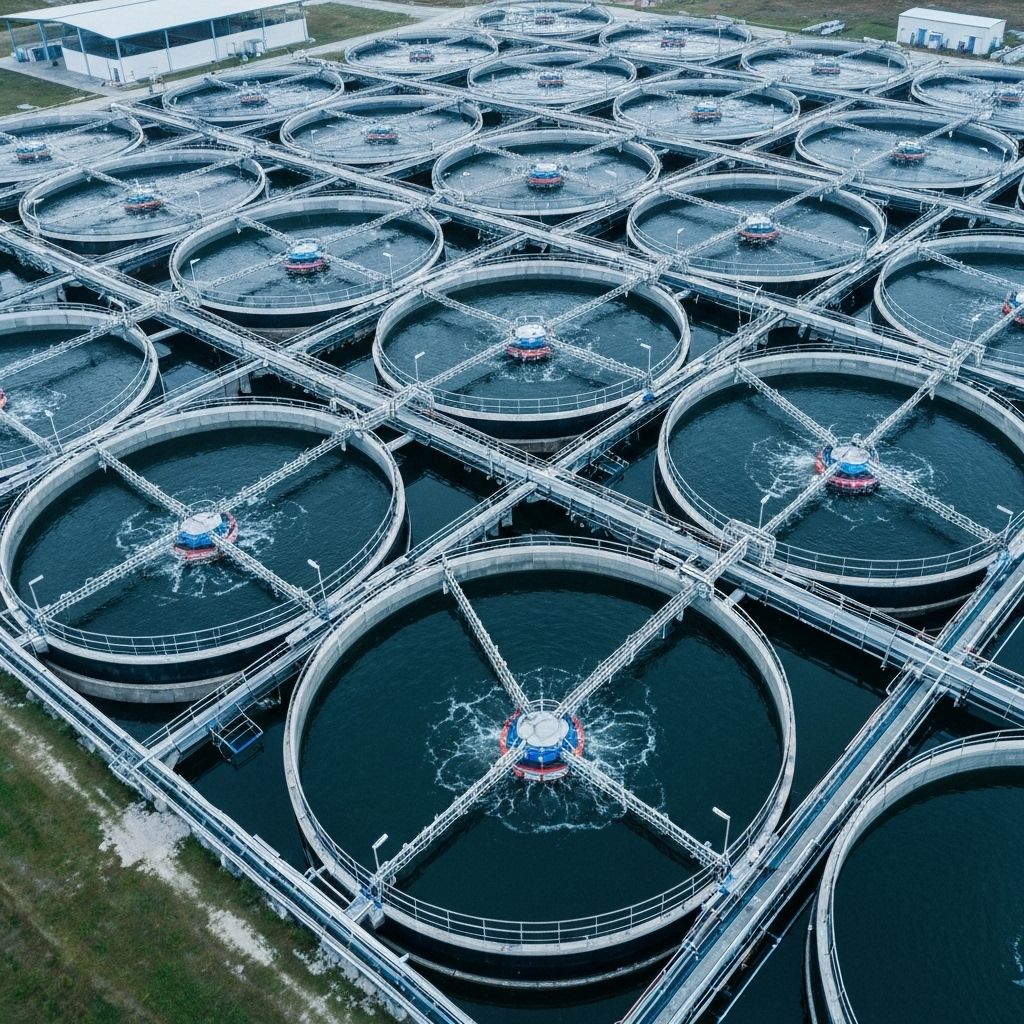

Aquaculture Solutions
Aquaculture Solutions
Optimize fish farming operations with superior water oxygenation and enhanced aquatic environment conditions.
  • Increased dissolved oxygen
  • Improved fish health
  • Higher yield rates
Hydroponics Solutions
Hydroponics Solutions
Optimize plant growth with superior nutrient delivery and enhanced root zone conditions.
  • Improved nutrient absorption
  • Healthier plant growth
  • Higher crop yields
Environmental Remediation
Environmental Remediation
Restore contaminated water bodies and improve environmental conditions with sustainable nanobubble solutions.
  • Lake restoration
  • Groundwater treatment
  • Eco-friendly approach
Equipment & Produce Cleaning
Equipment & Produce Cleaning
Nanobubbles penetrate surfaces to safely and effectively remove contaminants, ensuring superior cleaning with minimal chemicals.
  • Deep impurity removal
  • Reduced chemical use
  • Safe for equipment & produce

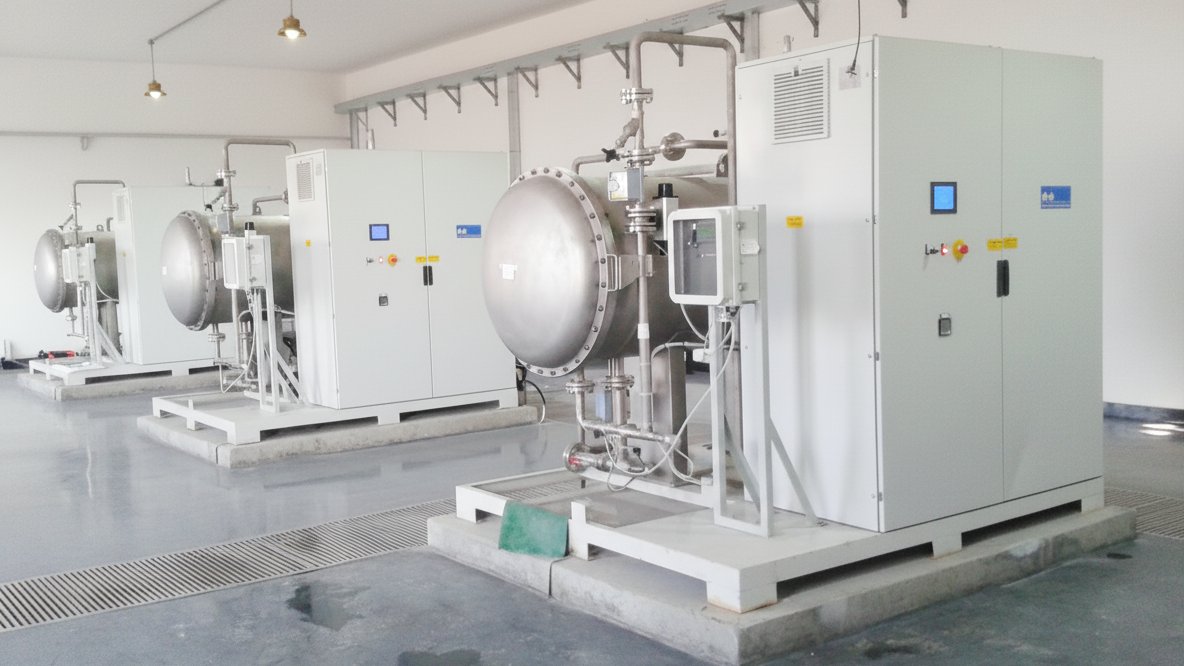

Ozone Oxidation
Ozone Oxidation
Ozone nanobubbles deliver strong sterilization and oxidation at low concentrations, inactivating microbes and breaking down organic contaminants.
  • High Sterilization Efficiency
  • Strong Oxidative Power
  • Rapid Action

Nanobubble Video

See innovation in action—delivering stronger performance, higher efficiency, and lasting value.

Nanobubble
Lab-scale Model
Large-capacity Model
Dissolved Oxygen Test using Air
Dissolved Oxygen Test using Oxygen
Installation of NBG in Livestock Wastewater Bioreactor
